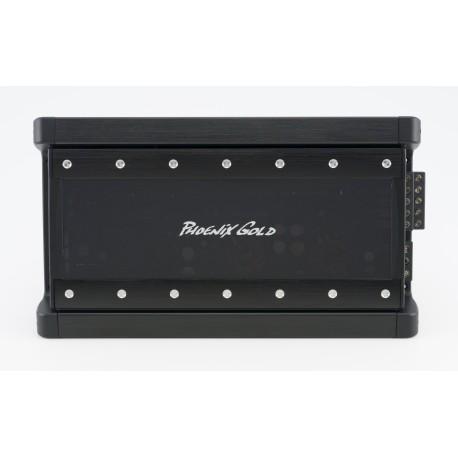

DISCONTINUED
- Class A/B Topology
- Front Channels Power Rating: 60w x 4 @ 4 ohms Stereo, 80w x 4 @ 2 ohms Stereo, 160w x 2 @ 4 ohms Bridged
- Sub Channel Power Rating: 200w x 1 @ 4 ohms, 300w x 1 @ 2 ohms
- Dimensions: 14.5” L x 8.4” W x 2.1” H
Premium Build Quality for Ultra Performance
- Legendary Phoenix Gold massive unregulated power supply built for dynamic headroom and to drive low 1ohm impedance loads
- Audio Precision Quality Control Verification
Chassis Features
- Audiophile BiPolar Output Transistors for efficient high current push
- Surface Mount Component Technology, double sided PCB
- High Level Inputs for easy OEM Integration
- Direct Insert Power and Speaker Terminals
- RMD port allows you to add a remote monitoring display, giving you a visual of the voltage of your system
Total Control of Your Music Output
Variable filters on each channel allow you to fine tune your musical output to the precision you demand. All crossovers feature aluminum shaft precision sealed potentiometers.
- Instruments and vocals are passed through with clarity to your front and rear channels with a Crossover Range of 30Hz to 300Hz
Specifications
Frequency Response |
± 1dB from 20Hz to 20kHz |
Signal to Noise Ratio |
>100dB |
High and Low Pass Crossovers |
12dB per Octave |
Crossover Range |
30Hz to 300Hz |
Low Level Input Range |
200 millivolts to 8 volts |
Lowest Recommend Load |
4 ohm Bridged / 1 ohm Stereo |
Typical Efficiency |
55% |
Damping Factor |
Greater than 200 |
RMS Power Output |
Front Channels Power Rating: 60w x 4 @ 4 ohms Stereo 80w x 4 @ 2 ohms Stereo 160w x 2 @ 4 ohms Bridged Sub Channel Power Rating: 200w x 1 @ 4 ohms 300w x 1 @ 2 ohms |
Recommend Power Wire Fuse: 60a
Power/Ground Wire Size: 4 Gauge
