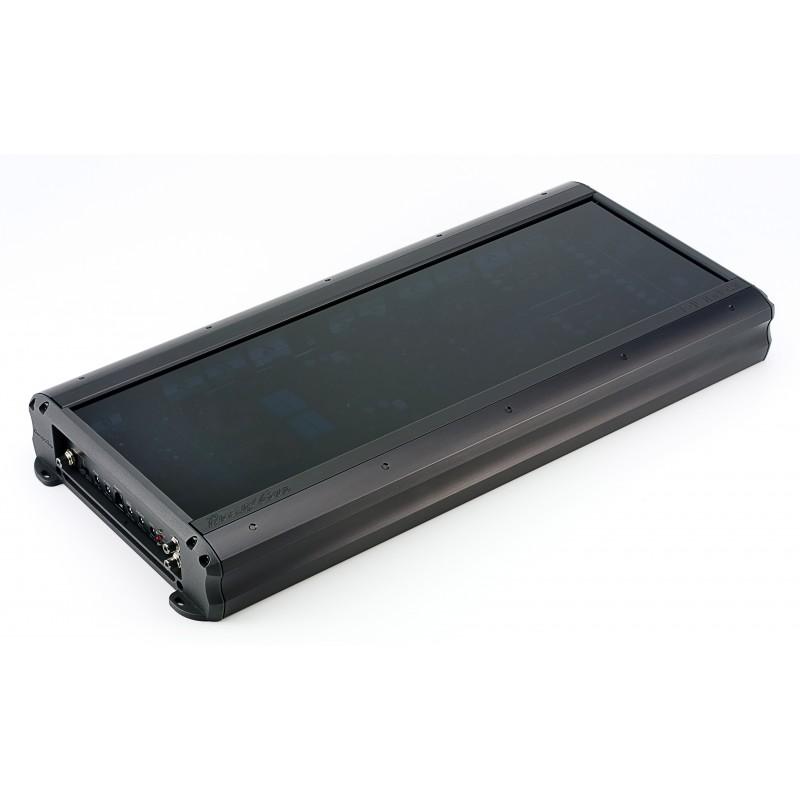

Elite 3200W Monoblock Amplifier

Deep, rich, thundering lows, with bass output so realistic you can feel it in your soul.  The Ti3X monoblock subwoofer amplifier drives massive power to any premium subwoofer with maximum efficiency unmatched by other amplifiers.  If you crave power and bass, the ELITE.1 is the perfect component for your build.

Key Specs

• Class D Topology
• Power Rating: 2400 x 1 @ 2 ohms | 3200 x 1 @ 1 ohm
• Dimensions: 23.3” L x 10.5” W x 2.6” H - 592mm L x 267mm W x 66mm H

Premium Build Quality for Ultra Performance

• Legendary Phoenix Gold massive quad unregulated power supplies are built for dynamic headroom and to drive low 1ohm impedance loads
• Nickle plated panel mounted RCA connections ensure signal purity and provide a high quality connection
• Clip light indicators ensure the amplifier reaches maximum undistorted output
• Power supply transformers are hand wound, featuring a third windings (as opposed to the standard two) to ensure higher efficiency and lower operating temperatures

 Chassis Features

• Extruded Aluminum Heatsink with Evenflow Technology
• Exhaust vents are built into the end caps. Airflow from the cooling system is pushed across the internal heatsink fins and exhausts out the side vents
• Linkable or strappable to an additional ELITE.1

Total Control of Your Bass Output

Variable filters allow you to fine tune your bass output to the precision you demand. All crossovers feature aluminum shaft precision potentiometers with 41 detents for exact crossover frequency selection.

• Tailor your hard hitting bass with an available Low Pass Crossover Range of 30Hz to 300Hz, Bass Boost 0 to +18dB; and a Subsonic Crossover Range of 10Hz to 55Hz to eliminate unwanted ultra low frequencies, improving the efficiency of your subwoofer
• Variable phase output can be adjusted 0 to 180 degrees. This adjustment can help achieve better “up front” bass, by enhancing your sub bass and mid bass transition and resolve subwoofer cancellation problems in certain installations.  Resulting in tight, articulate bass that blends perfectly into the rest of your audio experience

Specifications

Recommended Fuse Size: 300 amp

Power/Ground Wire Size: 1/0 Gauge
